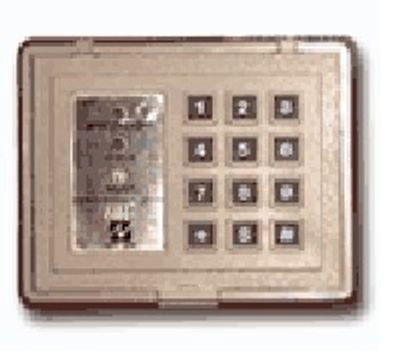

Napco MA800 Style Keypad

 DISARM:
Enter code at keypad. If error is made wait 5 seconds before re-entering.

TO ARM:
Close all protected doors and windows, even the door nearest the keypad. Wait for the solid green light and enter your code. Wait for solid red light and exit within 30 seconds.

TO FIND OPEN ZONE:
Green light will flash. Count the number of flashes to determine open zone.

RESET BURGLAR ALARM:
Enter code at keypad twice

TO BYPASS:
System only able to bypass all motions at once. Press (S) & yellow light will come on. Enter code for red and yellow lights to come on together.

TO RESET SMOKE/FIRE ALARM:
Enter code twice to silence. If this does not work (for earlier version) on side of the cabinet locate a push button and depress it to reset the power for the device loop.

TO CHANGE CODE:
Open alarm cabinet door and locate black slide switch in upper left corner. Slide switch to far right from (normally) center position. Enter your new code (2-6 digits) at keypad. Go back to cabinet & slide switch back to center.
