Napco MA1054E Style Keypad User Guide

HOW TO DISARM:
Enter your code into the keypad, if you enter a wrong code, you must wait at least 2 seconds before you try again.

HOW TO RESET:
Hold down 9 key till it beeps.

HOW TO CHANGE USER CODE:
Hold down the 8 key till it beeps. Enter your program code into keypad, the top 3 lights will flash and sounder will pulse. Press B or S key enter user # (1-5) then enter 4 digit code (1-9).

EX: press (B/S) + 1 + four digits - user 1's code. To erase code press B/S plus user # (1-5) to be erased.

EX: press (B/S) + 2 - user 2's code erased. to end program mode press B/S key twice.

TO BYPASS:
Hold down the number 9 until it beeps, then enter the code to arm or press B or S and then zone number to bypass and then enter the code to arm.

FLASHING GREEN LIGHT:
This means a zone is open or in trouble, hold down the number 3 key to display zone then try to close and reset. If unable to restore zone in trouble then press (b or s) key & the number of the zone (1-8) to be bypassed. Hold down the 2 key to display the bypassed zone(s).


Keypad says "P" and making noise:

To clear a "P" from your keypad display and silence the tone:  enter your code.


SYSTEM TROUBLE CODES - 3 FLASHING LIGHTS:

If your keypad is flashing numbers, note which ones.  If it is flashing lights, note which ones.  If it is flashing 3 lights AND numbers at the same time hold down the 9 button for 5 seconds.  Then look at the list below to troubleshoot.


1- AC Fail

2- Low battery

3- Communication Fail (You can hold down the 6 to check for dial tone and possibly clear this trouble. If that doesn't work, you need to test a signal through.)


Note:

If there has been a short term or intermittent issue with communication such as "Comm Fail" you can call the central station. put your system on test and intentionally trip the panic to test a signal through.

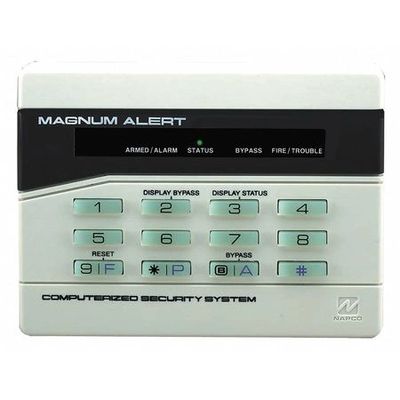

Napco MA1054E Keypad With Flashing Lights, Code Entry, and Zone Bypass Functions

Napco MA1054E Keypad With Flashing Lights, Code Entry, and Zone Bypass Functions

Download User Guide

Napco MA1054E Style Keypad User Guide (pdf)Download
